EntoCam : Automated Moth Monitoring System

What’s included in the package

  • 1 x Custom EntoCam Waterproof
  • 1 x PVC-Coated Polyester Light-Grey Screen
  • 4 x Carbon rods for 45 cm distance lens-screen
  • 1 x Tree trunk mounting strap
  • 1 x UV LED Hanger
  • 1 x 12V M8 to USB-A female cable for UV LED (1 m)
  • 1 x 12V Power Adapter with 5.5mm barrel connector (1.2 m)
  • 1 x 5.5mm barrel cable with bare end (1.5 m)

 Spare Parts

  • Spare  PVC-Coated Polyester Light-Grey Screen: $80/Unit
  • Spare  Carbon rods for 42 cm distance lens-screen: $40/Unit

Qty

Price/Unit (USD)

1-2

$1,050

3-5

$850

6-10

$775

11-24

$700

       25+

$650

EntoCam : Insect & Moth Monitoring Camera for Lepidoptera and Biodiversity Research

Revolutionizing Moth and Insect Surveillance for Biodiversity, Agriculture, and Research

EntoCam is a compact, rugged, field-ready automated moth and insect monitoring system designed for high-precision data collection. Whether you’re tracking Lepidoptera populations, surveying pest species, or studying pollinator behavior, EntoCam provides consistent, high-resolution imaging in both remote and controlled environments.

With its 64 MP Sony Starvis sensor and IP66-rated casing, EntoCam supports long-term deployment with minimal maintenance. Its intuitive interface and affordable price make it ideal for deploying multiple units in the field, enabling scalable and cost-effective moth camera trap applications.

Bridging the Data Gap in Lepidoptera & Insect Research

As moth and insect populations decline globally, understanding their dynamics is critical to preserving ecosystems and food systems. EntoCam allows researchers to conduct Lepidoptera monitoring across multiple sites and timeframes, offering insights into moth behavior, population shifts, and ecological health.

Deploying multiple EntoCam units expands spatial coverage, enabling continuous and automated data collection without manual observation or invasive methods.

EntoCam moth camera trap in forest - Outreach Robotics

Advanced features of EntoCam
for automated moth monitoring

moth monitoring noun insect 7659270

High resolution Imaging

Perfect for identifying fine wing patterns and subtle distinctions in moths and other insects

moth monitoring iconeEasyToUse

User-friendly Interface

An integrated screen with a simple user interface makes setup and adjustments quick and intuitive — no extra tools or tech required.

moth monitoring noun tool 7562124

Durable & Field-Tested

Waterproof, dustproof, and heat-resistant. Ideal for moth camera traps in remote areas.

moth monitoring noun bag 3496383

Lightweight & Mobile

Under 500 g and easy to carry, perfect for on-the-go entomological research.

Specifications of the EntoCam

Camera

Sensor Sony Starvis
Resolution 64 MP
SD Card Up to 512 GB
Input voltage 12V DC
Output power Max 36 W
Dimensions 162 x 133 x 67 mm
Weight 403 g
Operating Temperature -20°C to 60°C
IP Rating IP66

Screen kit

Fabric PVC-Coated Polyester
Tubes Carbon fiber
Dimensions 520 x 320 mm
Weight 144 g

Camera Mode

Operating mode Timelapse
Interval From 3 seconds to 24h
Operating hour 2 programmable periods
Photo burst 1-4

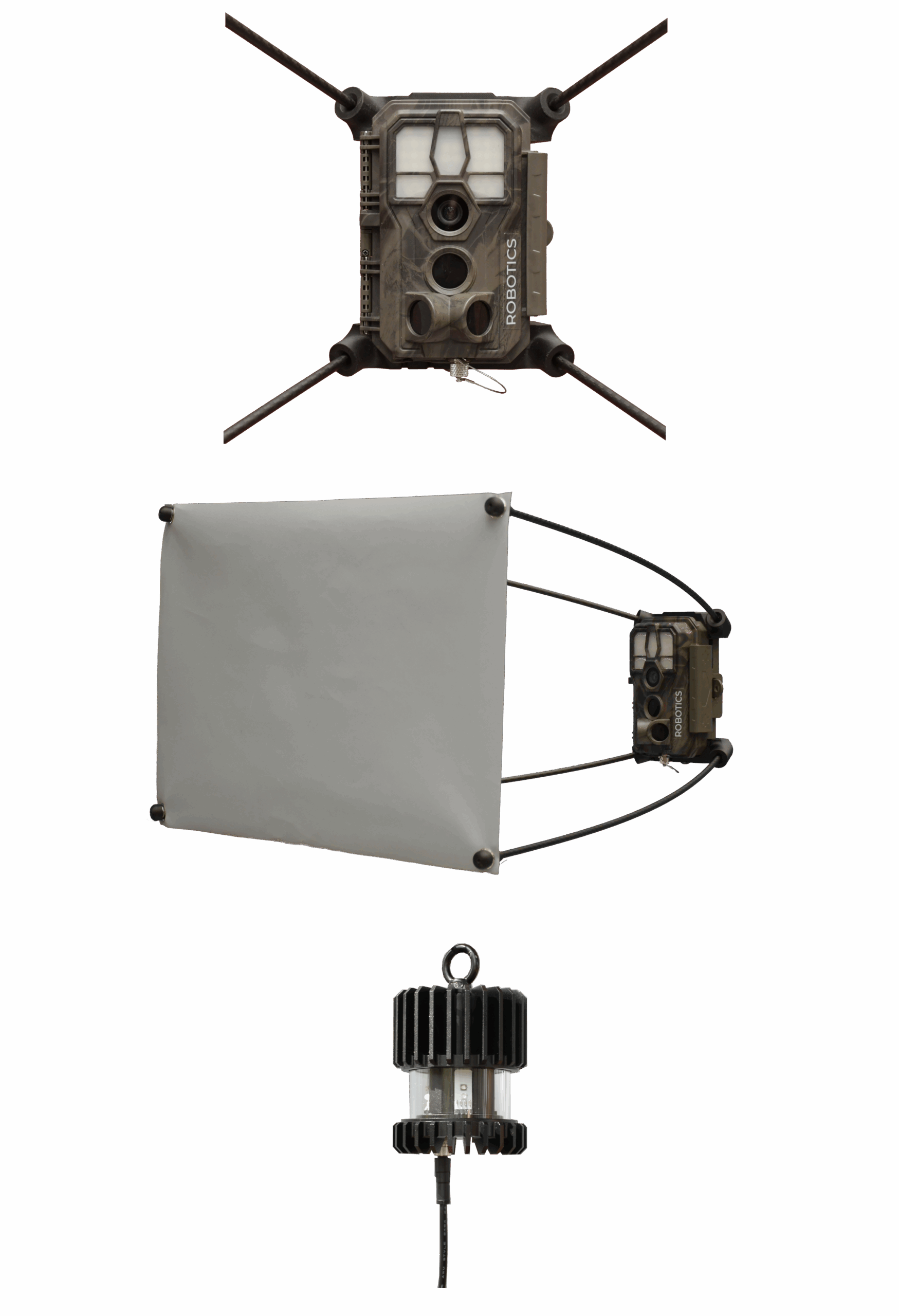

EntoCam - Moth monitoring camera - Outreach Robotics

Smart Design for Simple Field Deployment

Designed by and for researchers, EntoCam supports extended operation in harsh conditions. No extra tools or complex software required. With standard SD card compatibility (up to 512 GB) and intuitive settings, it’s an ideal automated moth monitoring solution for professionals who need to focus on results, not equipment setup.

EntoCam - Field-ready moth monitoring device - Outreach Robotics

Photos from Entocam
